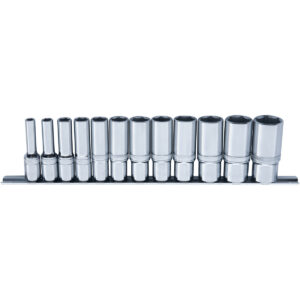

3/8” 6-Kant Steckschlüssel-Einsätze, lang (Zoll)
ANSI B107.
Ausführung: Verchromt und hochglanzpoliert. Material: Chrom-Vanadium-Stahl.
Ausführung: Verchromt und hochglanzpoliert. Material: Chrom-Vanadium-Stahl.

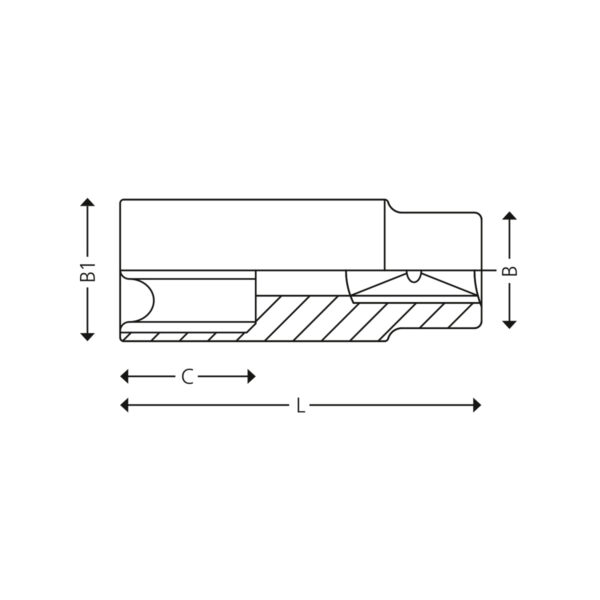

| Größe ” | Artikel-Nr. | B mm | B1 mm | C mm | L mm | Gewicht (g) |
|---|---|---|---|---|---|---|
| 1/4” | 5038-4108 | 17,0 | 9,9 | 6 | 63 | 50 |
| 9/32 | 5038-4109 | 17,0 | 10,6 | 6 | 63 | 50 |
| 5/16” | 5038-4110 | 17,0 | 11,8 | 9 | 63 | 51 |
| 11/32 | 5038-4111 | 17,0 | 13,0 | 9 | 63 | 53 |
| 3/8” | 5038-4112 | 17,0 | 14,5 | 9 | 63 | 56 |
| 13/32 | 5038-4113 | 17,0 | 14,5 | 9 | 63 | 59 |
| 7/16 | 5038-4114 | 17,0 | 15,7 | 12 | 63 | 62 |
| 15/32 | 5038-4115 | 16,0 | 17,0 | 12 | 63 | 70 |
| 1/2 | 5038-4116 | 16,5 | 18,0 | 12 | 63 | 76 |
| 9/16 | 5038-4118 | 17,0 | 19,6 | 15 | 63 | 86 |
| 19/32 | 5038-4119 | 18,0 | 21,8 | 15 | 63 | 111 |
| 5/8 | 5038-4120 | 19,0 | 22,0 | 15 | 63 | 102 |
| 21/32 | 5038-4121 | 20,0 | 23,4 | 15 | 63 | 112 |
| 11/16 | 5038-4122 | 20,0 | 23,4 | 15 | 63 | 122 |
| 3/4 | 5038-4124 | 23,0 | 26,0 | 18 | 63 | 142 |
| 25/32 | 5038-4125 | 24,0 | 27,1 | 18 | 63 | 162 |
| 13/16 | 5038-4126 | 25,0 | 28,0 | 18 | 63 | 160 |
| 7/8 | 5038-4128 | 26,0 | 19,6 | 21 | 63 | 195 |
