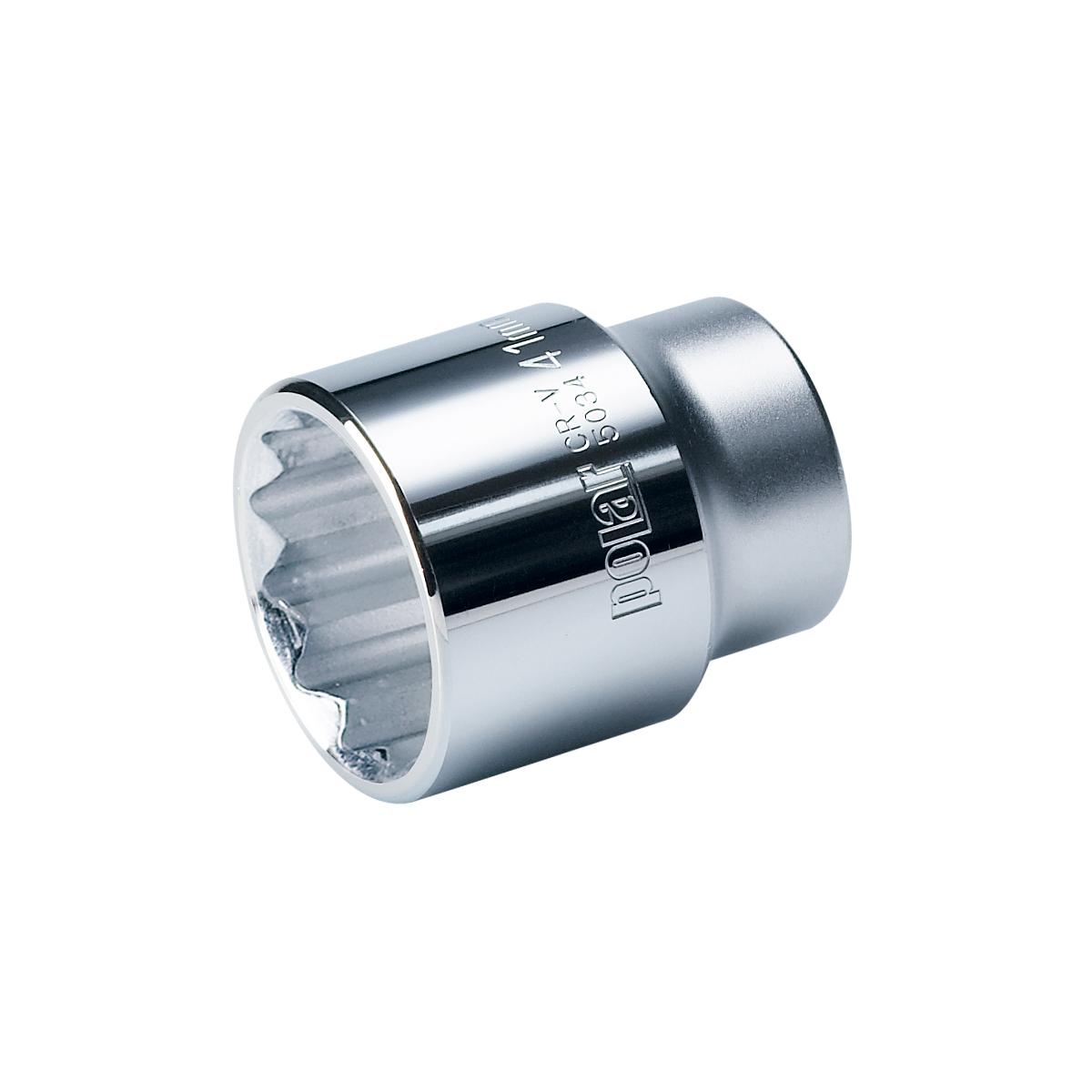

3/4” 12-Kant Steckschlüssel-Einsätze (mm)
ISO 2725-1, DIN 3124
Ausführung: Verchromt. Material: Chrom-Vanadium-Stahl.
Ausführung: Verchromt. Material: Chrom-Vanadium-Stahl.
| Größe mm | Artikel-Nr. | B mm | B1 mm | C mm | L mm | Gewicht (g) |
|---|---|---|---|---|---|---|
| 19 | 5034-2019 | 33,0 | 29,2 | 14 | 50 | 170 |
| 21 | 5034-2021 | 33,0 | 31,2 | 14 | 50 | 190 |
| 22 | 5034-2022 | 36,0 | 32,2 | 14 | 50 | 220 |
| 24 | 5034-2024 | 36,0 | 34,2 | 16 | 51 | 230 |
| 27 | 5034-2027 | 36,0 | 38,0 | 22 | 52 | 240 |
| 30 | 5034-2030 | 38,0 | 42,0 | 24 | 54 | 280 |
| 32 | 5034-2032 | 38,0 | 44,0 | 26 | 56 | 310 |
| 33 | 5034-2033 | 38,0 | 46,0 | 26 | 56 | 330 |
| 36 | 5034-2036 | 42,0 | 50,0 | 28 | 58 | 430 |
| 38 | 5034-2038 | 45,0 | 52,0 | 28 | 60 | 500 |
| 41 | 5034-2041 | 45,0 | 56,0 | 30 | 64 | 570 |
| 46 | 5034-2046 | 48,0 | 62,0 | 34 | 68 | 700 |
| 50 | 5034-2050 | 48,0 | 68,0 | 36 | 72 | 850 |
| 55 | 5034-2055 | 48,0 | 74,0 | 40 | 76 | 1000 |
